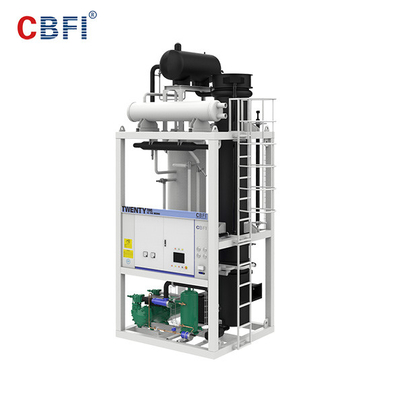

High Output Long Evaporator Tube Ice Making Machine 5000 kg / 24h Capacity

اطلاعات پایه
Place of Origin: Guangzhou, China
نام تجاری: CBFI
گواهی: CE, ISO9001,ISO14001
Model Number: TV10-TV300
Minimum Order Quantity: 1 set
Packaging Details: wooden case or Bubble film
Delivery Time: 30 days
Payment Terms: Western Union, L/C, T/T, MoneyGram
Supply Ability: 50 sets/ month
اطلاعات تکمیلی
Condition: Brand New Daily capacity: 1ton to 30 ton
Compressor: Germany Bitzer/ Germany Bock/ Taiwan Hanbell Tube ice diameter: 22mm, 28m, 35mm
Refrigerant: R22/ R404a Application: Drinks and eating
Cooling way: Air cooling and water cooling

توضیحات محصول

CBFI 5000kg/24h capacity, high outpet in summer, tube ice machine good price









Tube Ice Maker Machine Models for Reference



Item No. Production Compressor Rated Power Circulating Water Pump Power Cooling Water Pump Power Cooling Fan Power Ice Cutter Motor Power



Machine

Dimension



Weight of Machine

  Ton/24H KW KW KW KW KW L*W*H KG
TV10 1.0 3.69 0.37 1.1 0.18 0.75 1320*950*1800 900
TV20 2.0 7.11 0.55 1.1 0.18 0.75 1400*1100*1800 1200
TV30 3.0 9.68 0.55 1.1 0.37 0.75 1500*1100*1950 1500
TV50 5.0 17.47 0.55 1.5 0.75 0.75 1600*1250*2200 1800
TV100 10.0 30.89 0.75 2.2 1.5 1.5 1700*1300*2200 3500
TV150 15.0 42.6 1.5 2.2 2.2 1.5 3000*1500*2200 4250
TV200 20.0 53.2 1.5 2.2 2.2 1.5 3500*1500*2200 6500



Machine running condition: water temperature 23°C, evaporate temperature -12°C,condensing temperature 40°C, reference valve under 50Hz power condition. Real production of machine will have a little change according to change of water temperature







Commercial used Tube Ice machine



1.Daily Capacity : 1 ~ 30 ton



2.Ice making cycle : 16 ~ 30 mins



3.Ice Diameter : 22mm,28mm,35mm.

CBFI Tube Ice Machine Price 1 ton 3 ton 5 ton 10 ton



Health: All CBFI Tube Ice Machine Evaporator are food grade stainless steel 304(SUS304) material, come from Japan. Same daily capacity may have different price according to the different ice diameter and gas.

CBFI Tube Ice Machine Price 1 ton 3 ton 5 ton 10 ton



Easy to Operate : Germany Siemens CPUmonitor the machine making ice and drop ice automatically, machine working condition display on the touch screen clearly, operate the machine by touch screen like your smart phone.



CBFI Tube Ice Machine Price 1 ton 3 ton 5 ton 10 ton



Turn key project : CBFI supply every necesary for completed tube ice plant to our customer, like ice storage bin for ice packing, ice packing machine and ice storage room. Customer just need to prepare the power and water supply when you got the machine.





High Output Long Evaporator Tube Ice Making Machine 5000 kg / 24h Capacity

High Output Long Evaporator Tube Ice Making Machine 5000 kg / 24h Capacity



We have customer in China, Malaysia, Indonesia, Philippine, Maldives, Vietnam, Thailand, Myanmar(Burma), Dubai, Syria, Iran, Saudi Arabia, Egypt, Lebanon, Sudan, Oman, Mexico, Venezuela, Argentina, Nigeria, Angola, Congo, South Africa, Niger, Benin, Cameroon, Burkina Faso, Guinea, Guinea-Bissau, Mozambique, Papua New Guinea……
