R404A Refrigerant 10000kg Tube Ice Making Machine with PLC Siemens system

اطلاعات پایه
Place of Origin: China
نام تجاری: CBFI
گواهی: CE, ISO
Model Number: TV100
Minimum Order Quantity: 1 set
قیمت: USD 9500~10000000
Packaging Details: wooden case
Delivery Time: 35 days after the deposit
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 50 to 60 sets/month
اطلاعات تکمیلی
Compressor: Germany Bitzer compressor tube ice diameter: 35mm, 28mm, 22mm
Evaporator: Stainless steel 304 seamless pipe Cooling way: Water cooling
Daily Capacity: 10,000kg/24h Control system: Touch screen with English
PLC: Siemens system Origin: Guangzhou, China
Material: 304 Stainless steel Refrigerant: R404A/R22

توضیحات محصول

Stainless Steel 304 Evaporator edible level 10,000kg tube ice machine

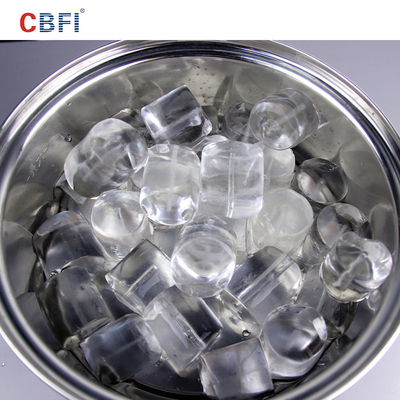

1. Tube Ice Application

Human consumption

Drinks & coffee shop, bar, hotel, restaurant

Supermarket, stores, food market

Food Processing factory

Poultry processing factory

Chemical and concrete project

Hospital & Medical care

R404A Refrigerant 10000kg Tube Ice Making Machine with PLC Siemens system

R404A Refrigerant 10000kg Tube Ice Making Machine with PLC Siemens system

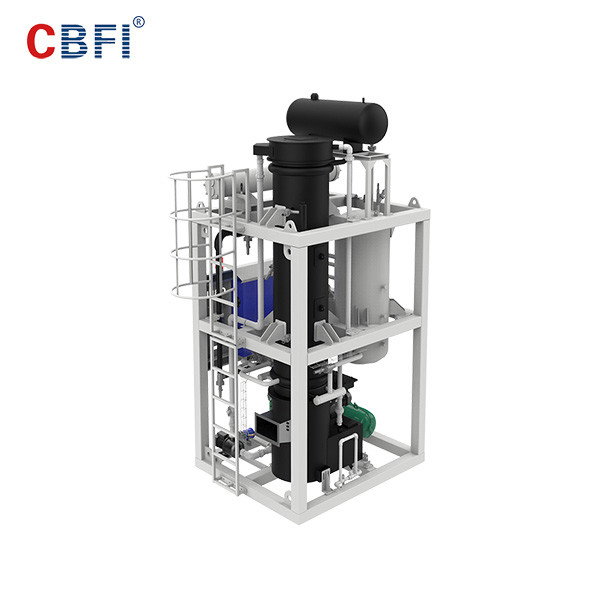

2. CBFI tube ice machine pictures

R404A Refrigerant 10000kg Tube Ice Making Machine with PLC Siemens system



10 ton tube ice machine



R404A Refrigerant 10000kg Tube Ice Making Machine with PLC Siemens system





3. Machine parameter





Model
Ice Making
Capacity
Rated
Power



Circulating Water
Pump Power
Cooling Water Pump Capacity
Cooling Fan Capacity
Ice Cutter Motor
Dimension
Weight of Machine
No.
Ton/24h
kw
kw
kw
kw
kw
W*H*L(mm)



KG
TV10
1.0
4.28
0.55
1.1
0.18
0.75
1100*900*1760
900
TV20
2.0
7.77
0.55
1.5
0.37
0.75
1250*1000*1950
1200
TV30
3.0
12.33
1.1
1.5
0.56
0.75
1400*1100*2200
1500
TV50
5.0
21
1.5
2.2
0.75
1.5
1600*1400*2250
1800

 TV100

    10.0

29.2
1.5
4
1.5
1.5
1200*1200*3100

 2300*1550*1800

3500
TV150
15.0
49
2.2

5.5

1.5
1.5

1500*1200*4500

2700*1950*2250
4250
TV200
20.0
58.5
1.5
5.5
2.2
2.2

1600*1300*4700

3100*2200*2250
6500
TV300
30.0
87.6
2.2
15
2.2
2.2
3000*2200*2500

 2200*1900*6200

7200


4. Main Features

1)Daily capacity from 1000 kg to 50,000 kg for optional, price different according to the machine capacity

2)Tube ice diameter 22 mm, 28mm, 35 mm for optional

3)Ice Making Automatically, monitored by Germany Siemens, no need people stand by

4) High efficiency running, power consumption 80 kw.h per ton ice

5) Ice output



5. Tube Evaporator Advantages:

1) Stainless 304 steel outer cylinder evaporator, improve the insulated performance

2) Seamless Stainless 304 evaporator tube made in Japan

3)Touch Screen Controller, operate the machine like your smart phone

tube-ice-machine-304stainless-steel-evaporator





6. Touch Screen Features

1. Easy to operate like the smartphone.
2. Display the machine running situation clearly.
3. It can be designed to control the machine to start or stop by phone

cube-ice-machine-touch-screen



FAQ

1:Q: Can the power supply be single phase? A: Single phase electricity is not applicable. It need the industrial supply electricity for the whole plant, that is to say it needs 3 phase electricity, 380~420V/50Hz/3P or 220~240V/ 60Hz/3P, or other types.
For special power supply type, we will design a special motor for you. So please kindly tell me your local industrial power supply when you send the inquiry, we will offer you based on the exact requirement.

2:Q: If this is my first time to invest ice business, what kind of factor I need to prepare for it?
A: Firstly it is better for you to do some marketing investigation to decide how big capacity machine you need to invest. Secondly you need to check that if there is clean water and power supply for the machine. If the power supply is not stable, many customers consider to equip power generator. As for water, it is better to equip water treatment to make pure water, filling inside machine to make ice.

Water treatment to pure water → ice machine to make ice → digital scale and sealing machine to pack ice bags → cold room to store ice

3:Q: Do you make testing and commissioning before you deliver the machine?
A: Yes, all of our machines will be tested and commissioned at least 3 days to ensure sufficient output and stable performance before delivery. When you get the machine, you just need to connect water and power to make ice.

4:Q: As for the edible ice making machine, which one is more popular, tube ice machine or cube ice machine?
A: The popularity depends on customers' habits. And both our cube ice machine and tube ice machine have a good marketing. According to our marketing experience, customesr from Southeast Asia and South America prefer tube ice; and customers from Middle East countries prefer cube ice.
