CBFI Water Cooling 1 Ton Ice Tube Machine with Siemens system

اطلاعات پایه
Place of Origin: China
نام تجاری: CBFI
گواهی: CE, ISO
Model Number: TV10
Minimum Order Quantity: 1 set
قیمت: USD 9500~10000000
Packaging Details: wooden case
Delivery Time: 35 days after the deposit
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 50 to 60 sets/month
اطلاعات تکمیلی
Compressor: Germany Bitzer compressor tube ice diameter: 35mm, 28mm, 22mm
Evaporator: Stainless steel 304 seamless pipe Cooling way: Water cooling
Daily Capacity: 1000kg/24h PLC: Siemens system
Material: 304 Stainless steel

توضیحات محصول

CBFI stainless steel evaporator energy saving 1 ton tube ice machine for ice seeling

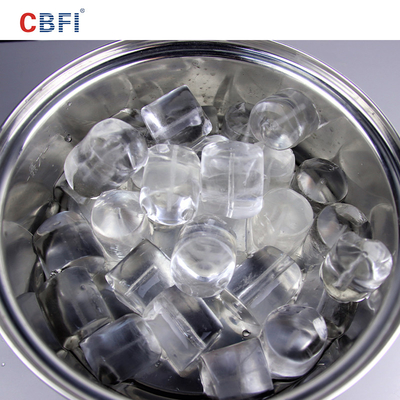

1. Tube ice picture

CBFI Water Cooling 1 Ton Ice Tube Machine with Siemens system

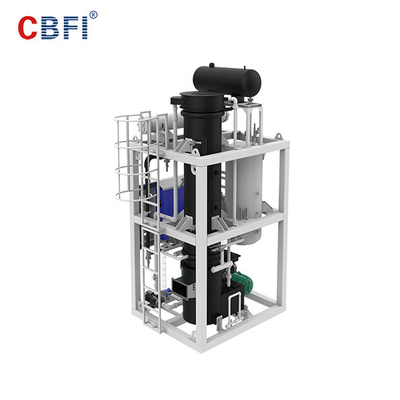

2. CBFI 1 ton tube ice machine

CBFI Water Cooling 1 Ton Ice Tube Machine with Siemens system



1 ton tube ice machine



CBFI Water Cooling 1 Ton Ice Tube Machine with Siemens system



3. Machine parameter





Model
Ice Making
Capacity
Rated
Power



Circulating Water
Pump Power
Cooling Water Pump Capacity
Cooling Fan Capacity
Ice Cutter Motor
Dimension
Weight of Machine
No.
Ton/24h
kw
kw
kw
kw
kw
W*H*L(mm)



KG
TV10
1.0
4.28
0.55
1.1
0.18
0.75
1100*900*1760
900
TV20
2.0
7.77
0.55
1.5
0.37
0.75
1250*1000*1950
1200
TV30
3.0
12.33
1.1
1.5
0.56
0.75
1400*1100*2200
1500
TV50
5.0
21
1.5
2.2
0.75
1.5
1600*1400*2250
1800

 TV100

    10.0

29.2
1.5
4
1.5
1.5
1200*1200*3100

 2300*1550*1800

3500
TV150
15.0
49
2.2

5.5

1.5
1.5

1500*1200*4500

2700*1950*2250
4250
TV200
20.0
58.5
1.5



5.5
2.2
2.2

1600*1300*4700

3100*2200*2250
6500
TV300
30.0
87.6
2.2
15
2.2
2.2
3000*2200*2500

 2200*1900*6200

7200


CBFI Water Cooling 1 Ton Ice Tube Machine with Siemens system



4. Machine base detail :

* Tube ice size : 22mm, 28mm, 35mm for option , the length of the tube ice can be designed     as customer need

* Long life span: The tube we will import the Japan 304 SUS Seamless steel pipe,which         can at least use for 20years.

* World famous brand components: most of the machine components we will use the world     famous brand like Germany Bitzer compressor , South Korea LG electricity components,         Denmark danfoss Expansion valve ect,.





   CBFI Water Cooling 1 Ton Ice Tube Machine with Siemens system

5. Machine parameters

1 ton / 24 hours ice tube machine parameters

Working condition Power supply 380v/50Hz/3phase , 380v/60Hz/3phase ,
220v/50Hz/3phase, 220v/60Hz/3phase
Refrigerant R22 / R 404a
Cooling way Water cooling / Air cooling
Max. Ambient temp. +45 ℃
Supply water temp 23 ℃
Evaporating temp. -12 ℃
Condenser temp. +40 ℃
Relative humidity 85 %
Noise 55dB



Compressor Brand Name Bitzer (From Germany)
Type Semi-Hermetic Piston type
Product Model 4EES-4 (4HP)
Power 7.2 kw
Refrigerating Capacity 17.8 kw
Cooling Tower Brand Name CBFI
Size Φ930*1640 mm
Power of Cooling Water Pump 1.1 kw
Power of Cooling Fan 0.48 kw
Cooling Water Consumption 0.05 m3/h
Ice making water Circulating pump Brand Name Nanfang
Power 0.55 kw
Ice Cutter Motor Brand Name Rador
Power

0.75 kw
