Commercial Edible 15000kg Tube Ice Maker For Drinking And Cold Storage

اطلاعات پایه
Place of Origin: China
نام تجاری: CBFI
گواهی: CE, ISO
Model Number: TV150
Minimum Order Quantity: 1 set
قیمت: USD 9500~10000000
Packaging Details: wooden case
Delivery Time: 35 days after the deposit
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 50 to 60 sets/month
اطلاعات تکمیلی
Compressor: Germany Bitzer compressor tube ice diameter: 35mm, 28mm, 22mm
Evaporator: Stainless steel 304 seamless pipe Cooling way: Water cooling
Daily Capacity: 15,000kg/24h Control system: Touch screen with English
PLC: Siemens system Origin: Guangzhou, China
Material: 304 Stainless steel Refrigerant: R404A/R22

توضیحات محصول

Commercial used easy control edible level 15 ton tube ice machine



1. Crystal tube ice



Commercial Edible 15000kg Tube Ice Maker For Drinking And Cold Storage

Commercial Edible 15000kg Tube Ice Maker For Drinking And Cold Storage

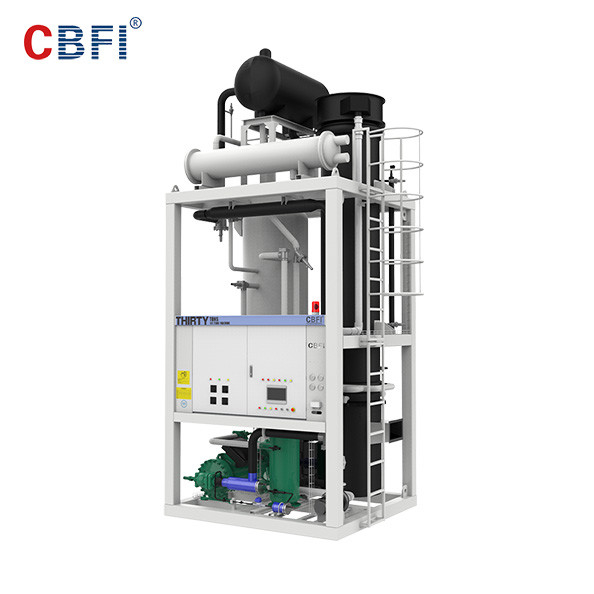

2. CBFI tube ice machine pictures

Commercial Edible 15000kg Tube Ice Maker For Drinking And Cold Storage



15 ton tube ice machine



Commercial Edible 15000kg Tube Ice Maker For Drinking And Cold Storage





3. Machine parameter





Model
Ice Making
Capacity
Rated
Power



Circulating Water
Pump Power
Cooling Water Pump Capacity
Cooling Fan Capacity
Ice Cutter Motor
Dimension
Weight of Machine
No.
Ton/24h
kw
kw
kw
kw
kw
W*H*L(mm)



KG
TV10
1.0
4.28
0.55
1.1
0.18
0.75
1100*900*1760
900
TV20
2.0
7.77
0.55
1.5
0.37
0.75
1250*1000*1950
1200
TV30
3.0
12.33
1.1
1.5
0.56
0.75
1400*1100*2200
1500
TV50
5.0
21
1.5
2.2
0.75
1.5
1600*1400*2250
1800

 TV100

    10.0

29.2
1.5
4
1.5
1.5
1200*1200*3100

 2300*1550*1800

3500
TV150
15.0
49
2.2

5.5

1.5
1.5

1500*1200*4500

2700*1950*2250
4250
TV200
20.0
58.5
1.5
5.5
2.2
2.2

1600*1300*4700

3100*2200*2250
6500
TV300
30.0
87.6
2.2
15
2.2
2.2
3000*2200*2500

 2200*1900*6200

7200


4. Main Features

1)Low power consumption: Power consumption of Tube Ice Machine is 75~80 kw.h/ton.

2)No ice dropping problem. CBFI adopt hydraulic expansion technique to ensure the size consistency of evaporater tube, it can avoid ice dropping problem.

3)Fast ice dropping time. Make full use of hot Freon gas in system to help ice dropping with the whole process takes within 120 seconds.



5. Healthy & Sanitary Tube Ice

1.The tube ice evaporator is made of SUS304 material to ensure ice is totally clean for human consumption.

2) There are 3 size of tube ice diameter for choose: 22mm, 28mm, 35mm.

tube-ice-machine-304stainless-steel-evaporator





6. Certificate

Ice tube machine price made in China





FAQ

1:Q: Can the power supply be single phase? A: Single phase electricity is not applicable. It need the industrial supply electricity for the whole plant, that is to say it needs 3 phase electricity, 380~420V/50Hz/3P or 220~240V/ 60Hz/3P, or other types.
For special power supply type, we will design a special motor for you. So please kindly tell me your local industrial power supply when you send the inquiry, we will offer you based on the exact requirement.

2:Q: If this is my first time to invest ice business, what kind of factor I need to prepare for it?
A: Firstly it is better for you to do some marketing investigation to decide how big capacity machine you need to invest. Secondly you need to check that if there is clean water and power supply for the machine. If the power supply is not stable, many customers consider to equip power generator. As for water, it is better to equip water treatment to make pure water, filling inside machine to make ice.

Water treatment to pure water → ice machine to make ice → digital scale and sealing machine to pack ice bags → cold room to store ice

3:Q: Do you make testing and commissioning before you deliver the machine?
A: Yes, all of our machines will be tested and commissioned at least 3 days to ensure sufficient output and stable performance before delivery. When you get the machine, you just need to connect water and power to make ice.

4:Q: As for the edible ice making machine, which one is more popular, tube ice machine or cube ice machine?
A: The popularity depends on customers' habits. And both our cube ice machine and tube ice machine have a good marketing. According to our marketing experience, customesr from Southeast Asia and South America prefer tube ice; and customers from Middle East countries prefer cube ice.
